Design CCA (Circuit Card Assembly) with a 360° Engineering Insight for Industrial and Mission-critical applications.

Searching for a dependable Circuit Card Design? Congratulations! You have landed at the perfect destination!
At SpaceEquation, we are the ultimate hub for all your Circuit Card Design needs. We have a team of design experts to develop a CCA from a drawing-board concept to a production-ready solution. We offer a comprehensive solution covering all major elements of CCA design for Industrial or Mission-critical applications. We design CCAs (Circuit Card Assembly) with a proven HDLC (Hardware Development Life Cycle) process enhanced with decades of experience in delivering high-quality designs.

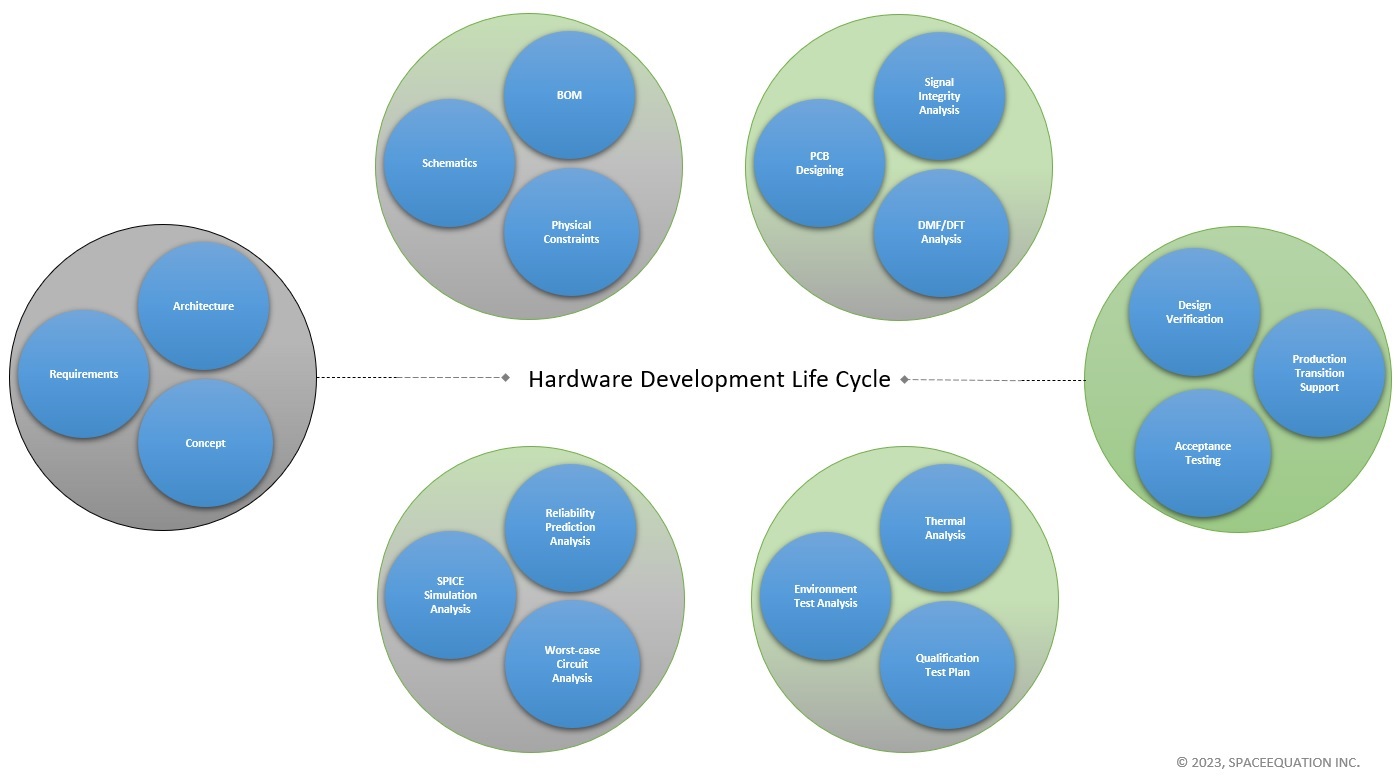

We support all stages of HDLC: Requirements, Architecture, Detailed Design, Analysis, and Production Transition. Simulation and Analysis in HDLC are aimed at improving product reliability and is an important considerations for CCAs used in Mission-critical applications. SpaceEquation supports all the phases of HDLC through to the serial production phase, and we help companies become self-sufficient in achieving the mass production.

Our Specialization:

1. High-speed CCA Designs: PCIe, DDR, and Ethernet
2. High-power Sub-kilowatt to Multi-kilowatt Designs
3. Motor Control and Sensor Applications
4. Circuit Simulation (Pspice and LTspice)
5. Worst-Case Circuit Analysis
6. Circuit Reliability Prediction
7. Qualification support (FCC and DO160)
We understand the importance of meeting deadlines and our experts are here to help you to stay ahead of the curve with our truly cross-functional team.

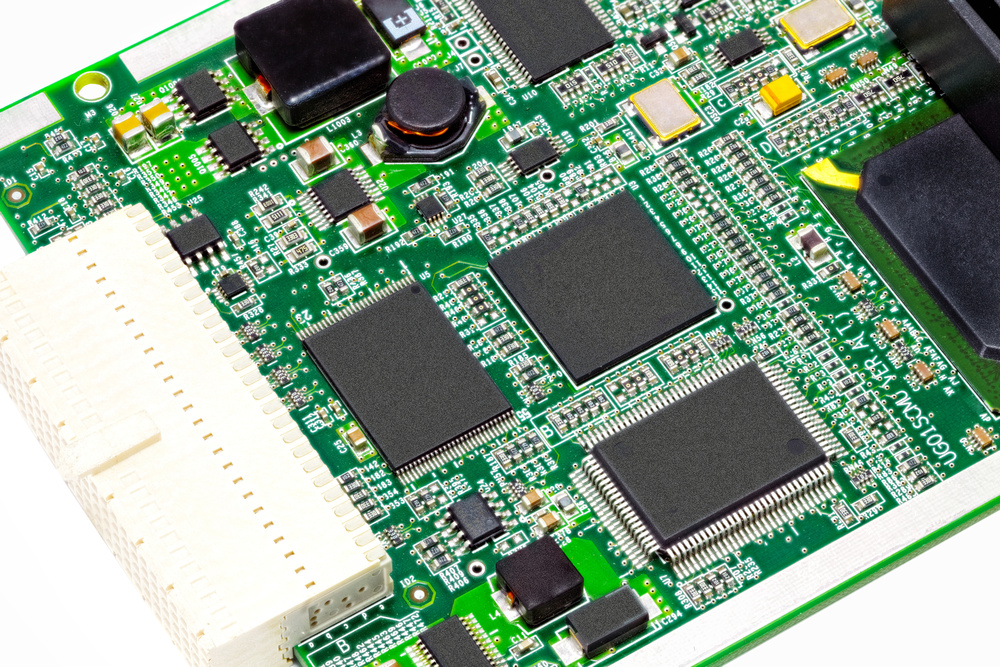

CCA (Circuit Card Assembly) Hardware Design

CCA designs produced at SpaceEquation are state-of-the-art in performance and capable of meeting the most challenging requirements for Mission-critical and Industrial applications. Our designs integrate complex electronic devices, modules, and ICs (Integrated Circuits) such as SOC (System-on-Chip), high-speed memory (DDR) & high-speed communications devices: PCIe, USB and Ethernet etc. We have expertise in working with specialized communication protocols such as ARINC429, RS422/485 & CAN, SPI, I2C, I2S etc.

We are capable of meeting design goals and consideration such as miniaturization, and stackable layouts with proven thermal management techniques. Products are designed with obsolescence mitigation strategies to sustain extended EOL (End of Life) product manufacturing life cycles.

We specialize in high-power CCA designs SMPS (switching-mode power supplies) and linear regulators for AC/DC converters and DC/DC converters are some of our key focus areas. We have experience in working with motor control applications, generator control and heating applications and developing designs for Aerospace and other Mission-critical applications.

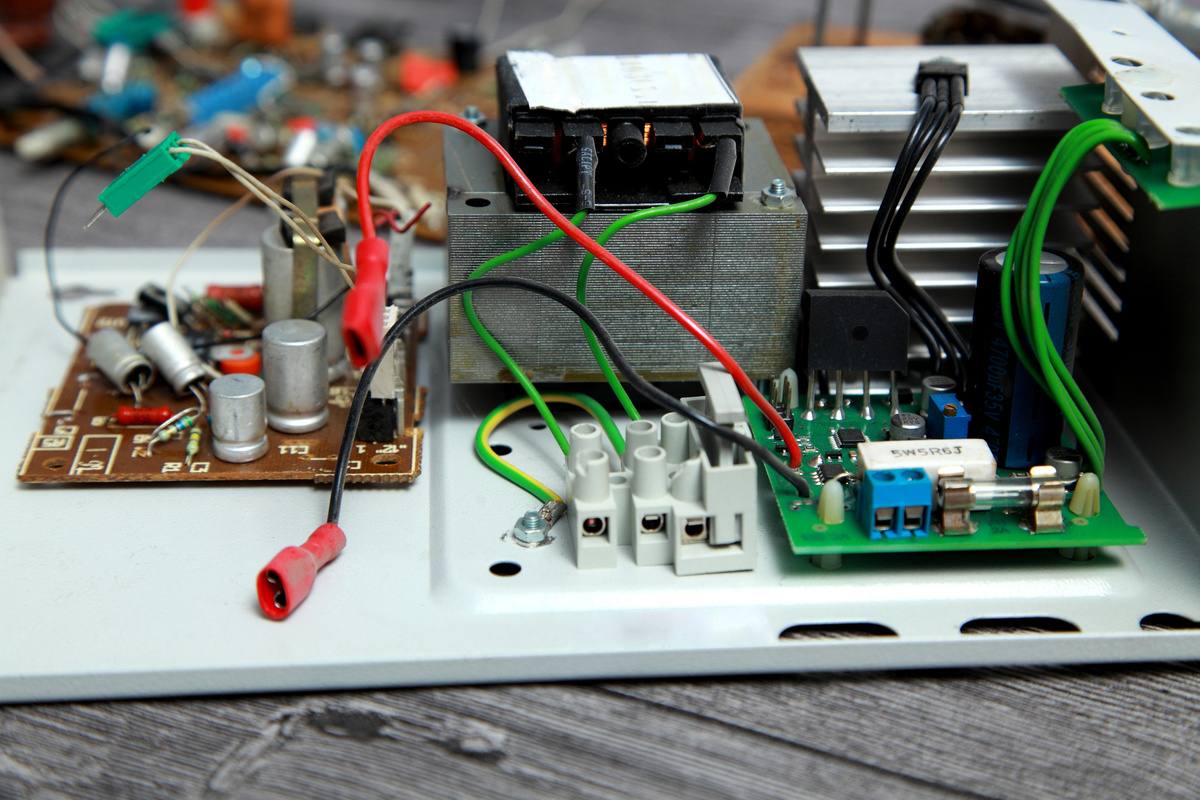

Prototype Design

Want to see your idea working? Our prototype design services offer a complete solution for turning your ideas into tangible realities. With state-of-the-art technology and a team of skilled professionals, we specialize in transforming your ideas into functional prototypes. From an idea to a final output design, we ensure precision and attention to detail at every stage.

While simplicity in design is our goal, we never shy away from design prototypes with high complexity, stacked CCAs, with wiring harness integrated inside a chassis with a completely assembled and tested unit that is ready for evaluation. Contact us today and let our prototype design services turn your vision into reality.

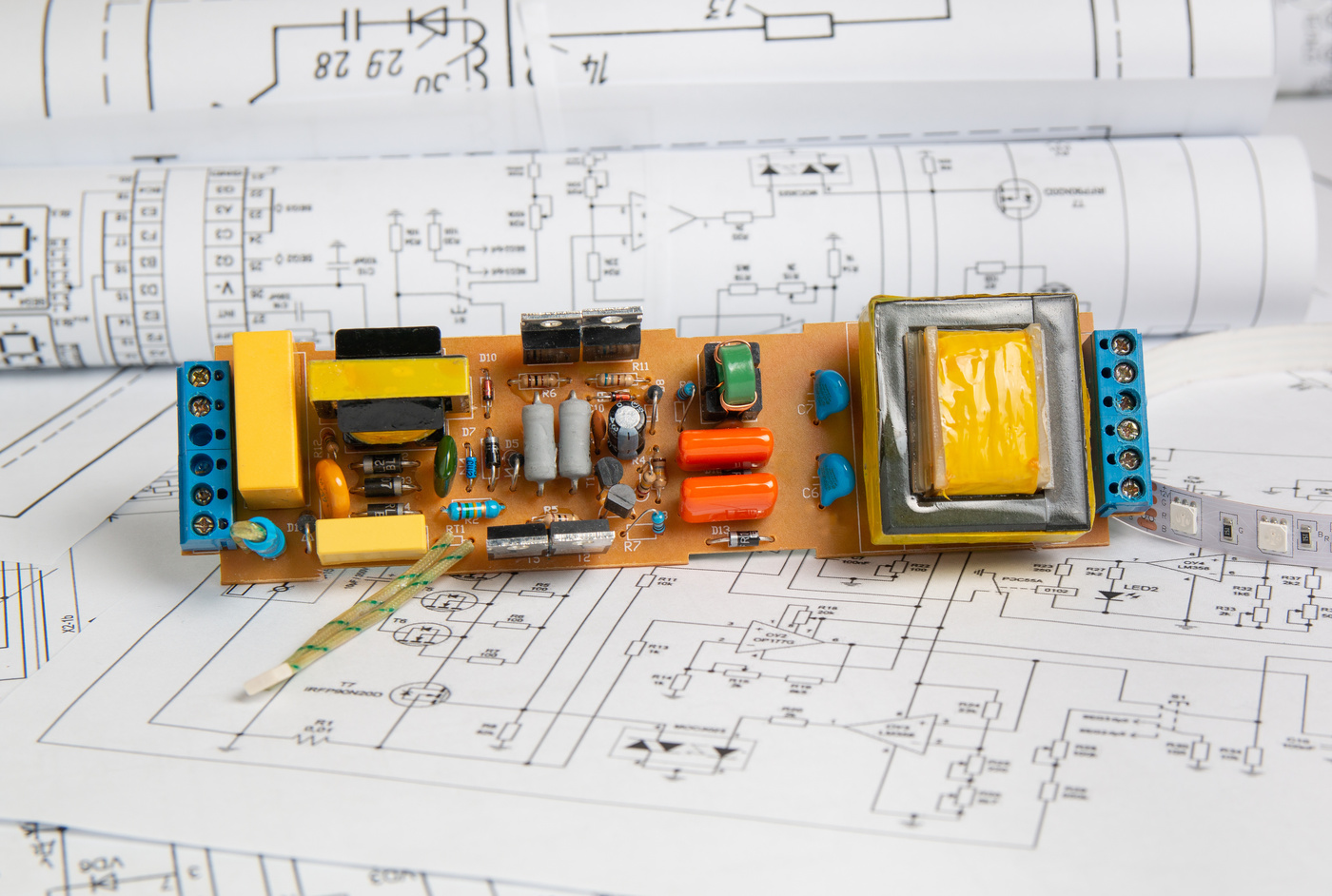

Reinvent, Rebuild and Enhance your product ambitions with our Reverse Engineering Design services!

Struggling with legacy designs? Looking for engineering support in redesigning your products. Our team specializes in revitalizing outdated designs by leveraging modern technologies and innovative solutions. With our design services, your legacy products can evolve and stay relevant in today's competitive market. Our team of experienced hardware engineers will analyze the requirements and help you to redefine your next generation products.

We use best-in-class techniques and latest tools to ensure that we deliver the best solutions with high quality. Our comprehensive range of services includes a complete suite of Circuit Card Design services, including schematics design, redesigning, and recovering lost final design data using reverse engineering, prototype design, form-fit function and more. Our team of experienced engineers uses advanced technologies to ensure that all our designs meet the highest industry standards.

Future-proof your designs and eliminate obsolescence worries with SpaceEquation's reliable Circuit Card Design!

Do not let component obsolescence hinder your project. We help you sail through the challenges in a product manufacturing environment, from obsolescence problems with alternative component(s) that are FFF (Form, Fit & Function) compatible and minimize the impact on CCA manufacturing and production targets.

FFF in Circuit card design are alternate components with the same physical form, mechanical fit, and functional performance as the original components. By implementing FFF design solutions, our dedicated team will help you overcome obsolescence challenges, reduce production disruptions, extend product lifecycles, and maintain the integrity and functionality of your CCAs.

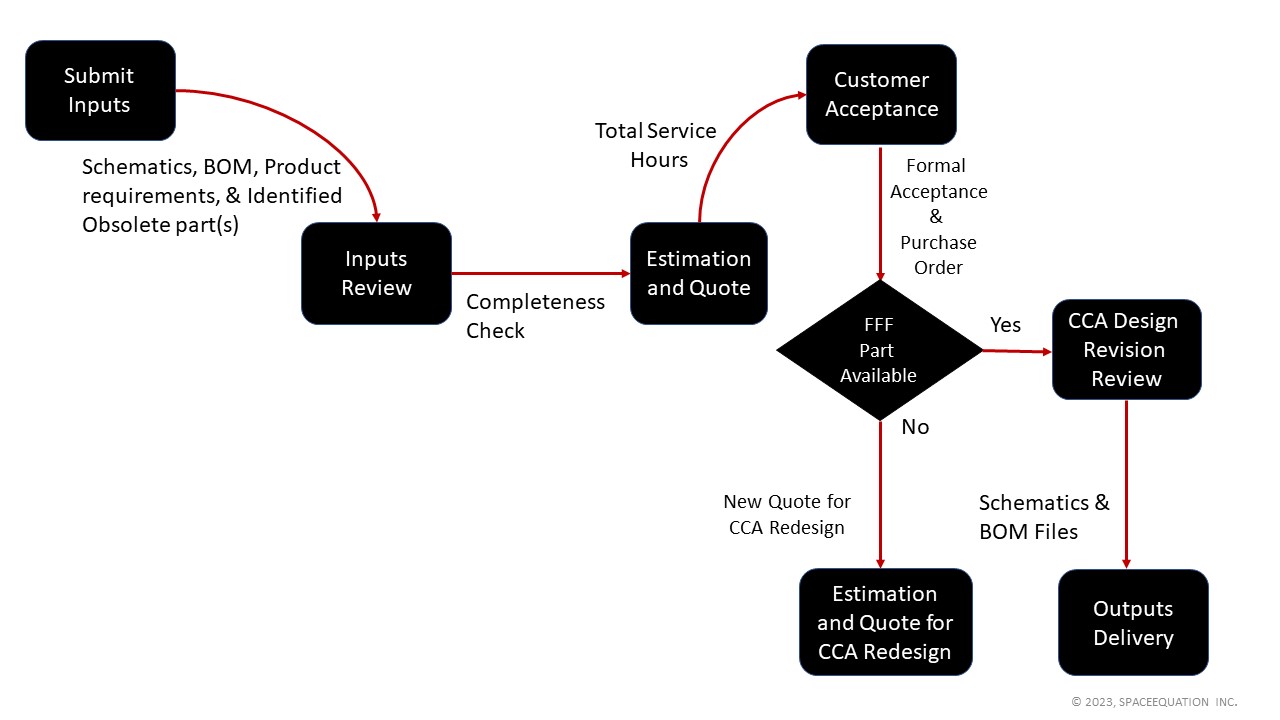

Experience a seamless design process with us. Share your inputs, and our expert team will craft the schematics and BOM tailored to your needs. You will receive a comprehensive estimation, and upon your approval, we will conduct a meticulous design review. In the case of unavailable FFF alternative parts, we provide you a quote for the CCA redesign and continue the project based on customer approval. At SpaceEquation, we ensure our customers are satisfied every step of the way. Send us an enquiry: sales@spaceequation.com with subject "RFQ:CCA design" and we will respond to you on the same day.
